Image Overlay
Overview
This tool overlays an image on top of the input signal. You can tap/click the camera icon to take a snapshot of the current frame and use that as the overlay, or load a saved image from a file. This can be useful for aligning the camera position or an in-frame object with a previous reference, or for comparing composition, color, or exposure values.

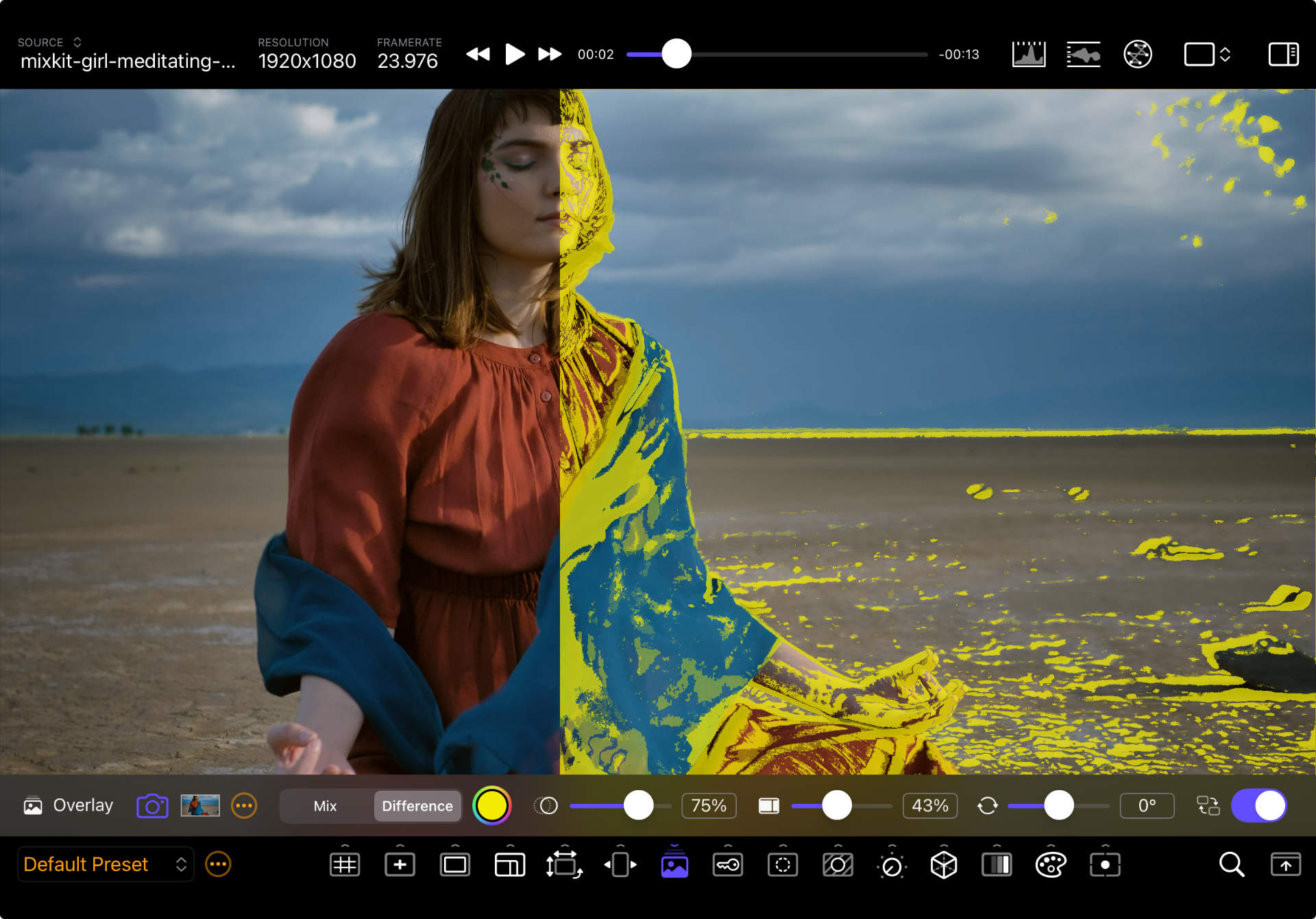

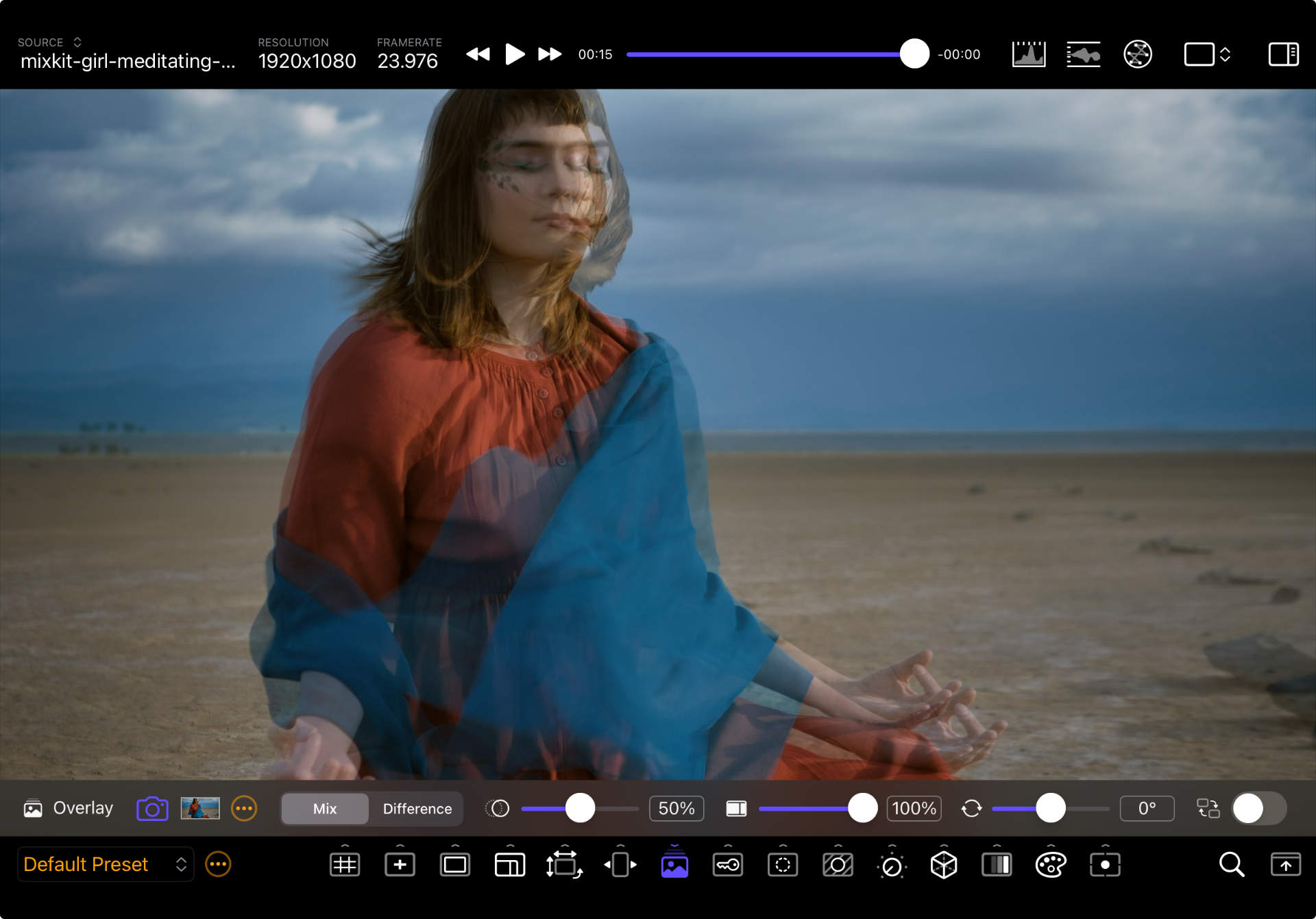

This tool can use two different blend modes for the overlay: normal mix and difference.
Additional options provide control of the opacity, wipe amount and angle of the overlay.
A small thumbnail of the currently loaded reference frame is shown in the reference frame well on the options drawer.
Options
| Option | Values | Default | Description |
|---|---|---|---|
| Take Snapshot | - | - | Takes a snapshot of the current image and stores it in frame memory. |
| Snapshot Actions | Save/Clear/Load | - | Actions to take on the contents of frame memory. |
| Blend Mode | Mix/Difference | Mix | Overlay blend mode to use. |
| Opacity | 0% to 100% | 50% | Controls the transparency of the frame overlay. |
| Wipe Amount | 0% to 100% | 100% | Controls the overlay wipe amount across the image. |
| Wipe Angle | -90° to +90° | 0° | Controls the angle of the wipe. |
| Swap Source/Snapshot | On/Off | Off | Inverts the compositing order of the source and snapshot. |
| Difference Color | Color | Red | Controls the color of the difference highlight. |
