Histogram
Overview
The Histogram scope shows the luminance distribution in the image. Three types of histogram displays are available in the non-PRO version of CineMon: Luma, RGB, and Stacked.

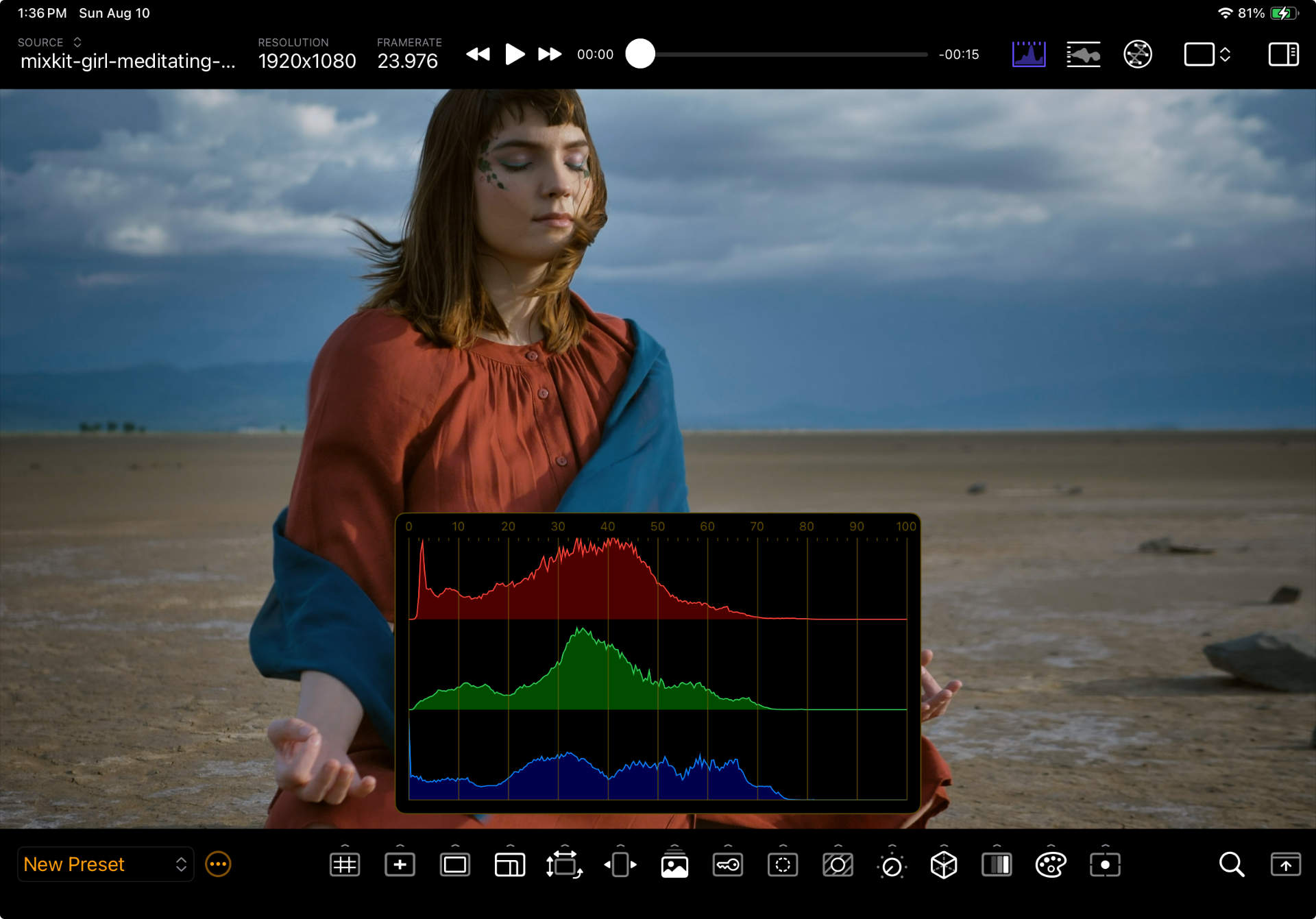

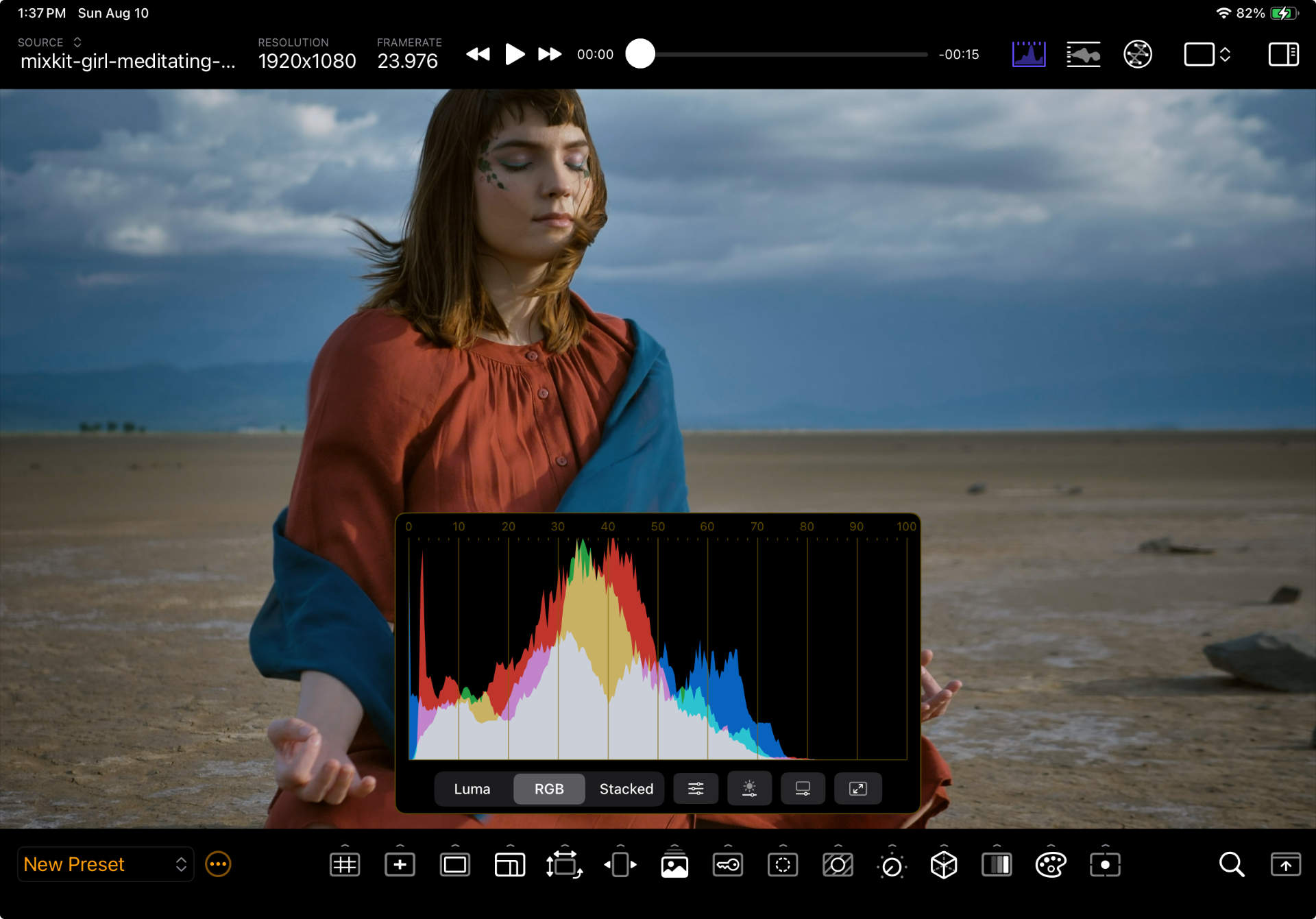

Double-click/tap in the window to open the histogram settings bar. The RGB mode overlays semi-transparent R, G, and B channel traces while the Stacked mode displays them one on top of the other. You can adjust the trace’s gain, move and resize the histogram window or make it full screen. You can also customize the color and opacity of the reticle and the opacity of the floating window background.
Settings
| Setting | Options | Description |
|---|---|---|
| Display Mode | Luma/RGB/Stacked | Select the Histogram display mode. |
| Scope Settings | Reticle Color | Customize the color of the reticle. |
| Trace Gain | Slider | Applies gain to the histogram trace. |
| Window Settings | Size | Adjust the size of the floating window. |
| Opacity | Change the transparency of the floating window background. | |
| Full Screen | - | Make the floating scope full screen. |
Increasing Trace Gain can reveal subtle mid‑tone detail on footage that otherwise hugs the floor.
